- Sorensen DCS55-55, 55Vdc 55Amps 3000Watts 4 in stock, Tested. Sorensen DCS55-55, 55Vdc 55Amps 3000Watts 4 in stock, Tested.










Sorensen DCS55-55, 55Vdc 55Amps 3000Watts 4 in stock, Tested.
- Description
- Shipping & Returns
- Reviews

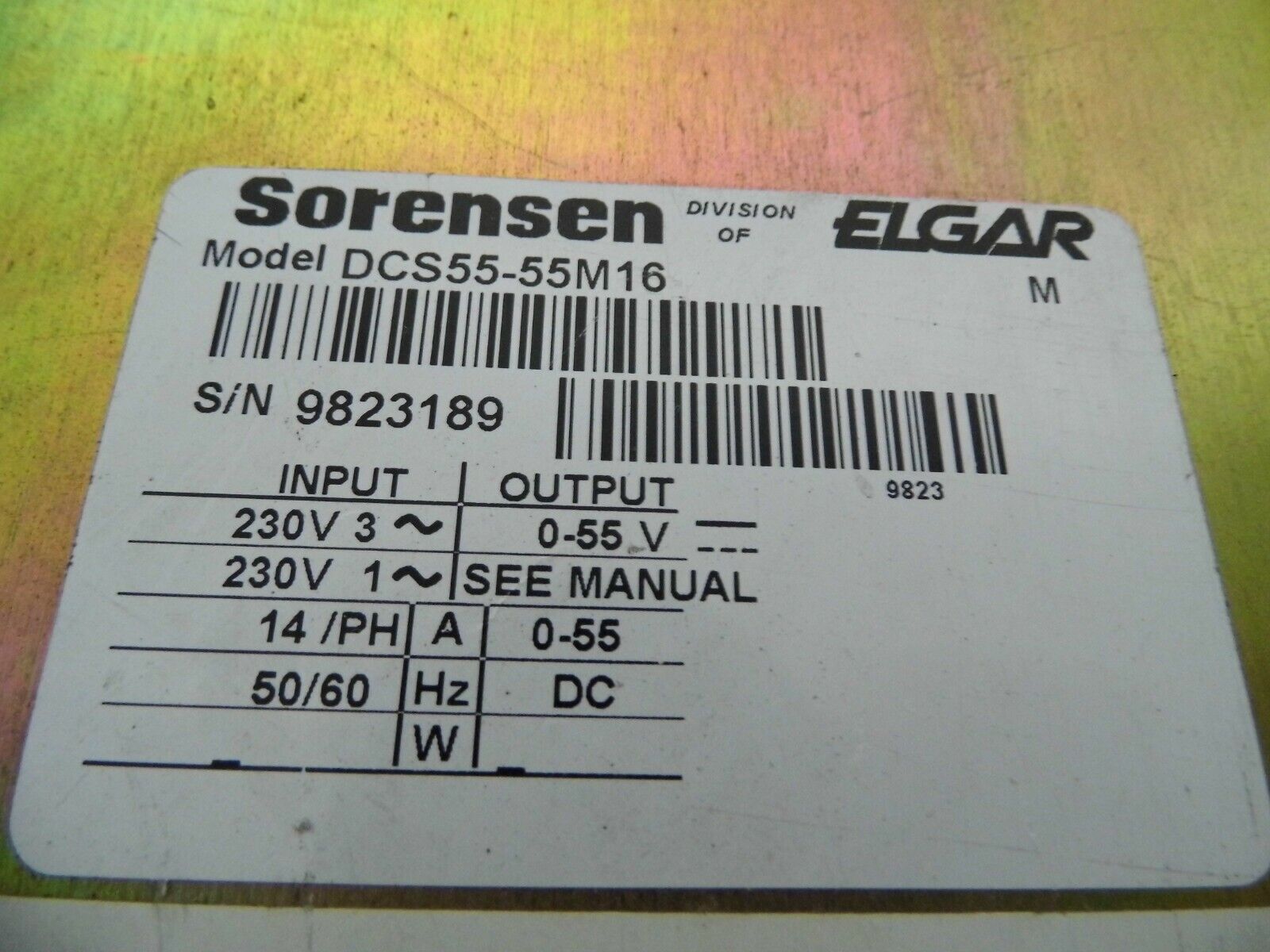

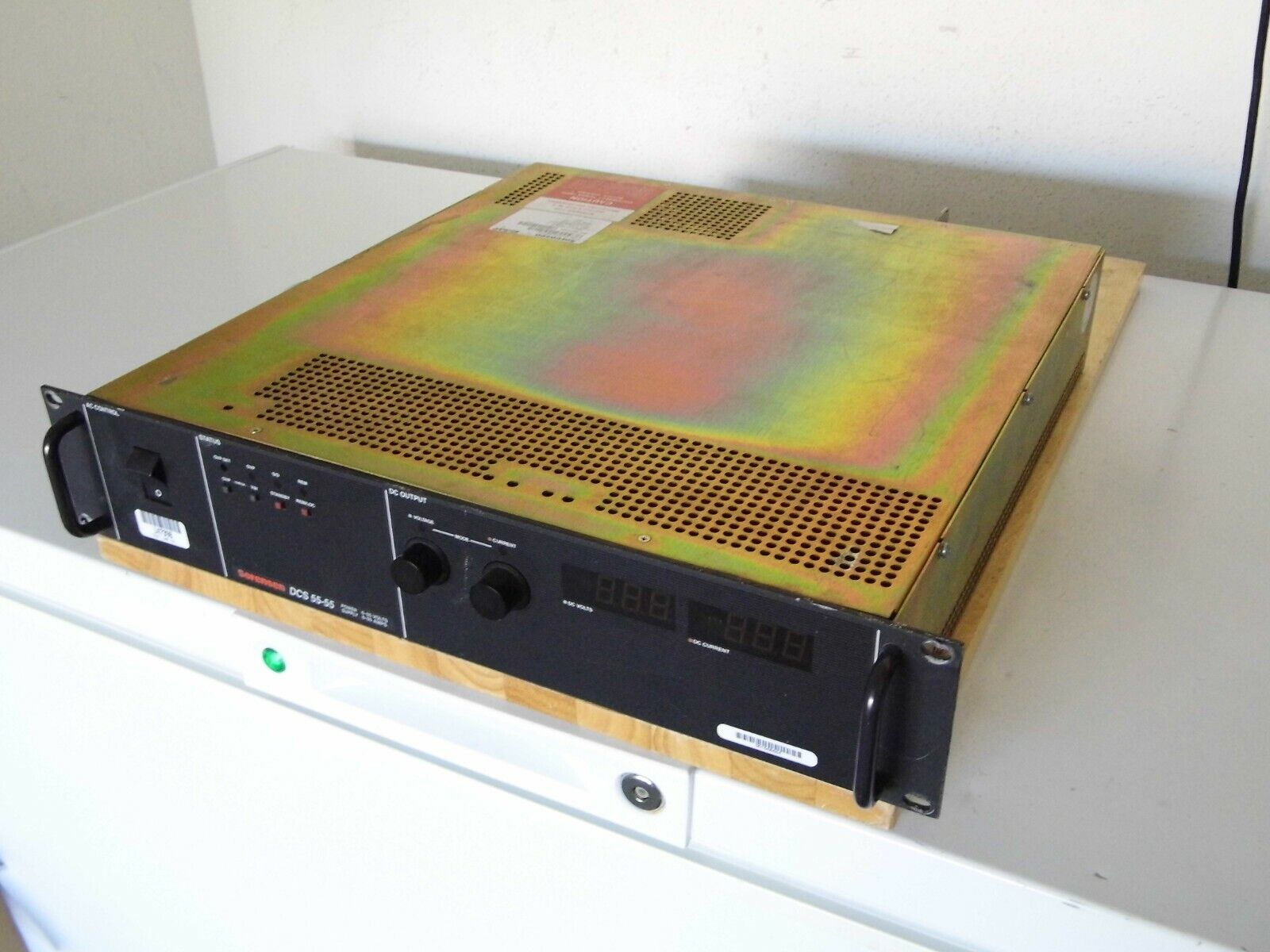

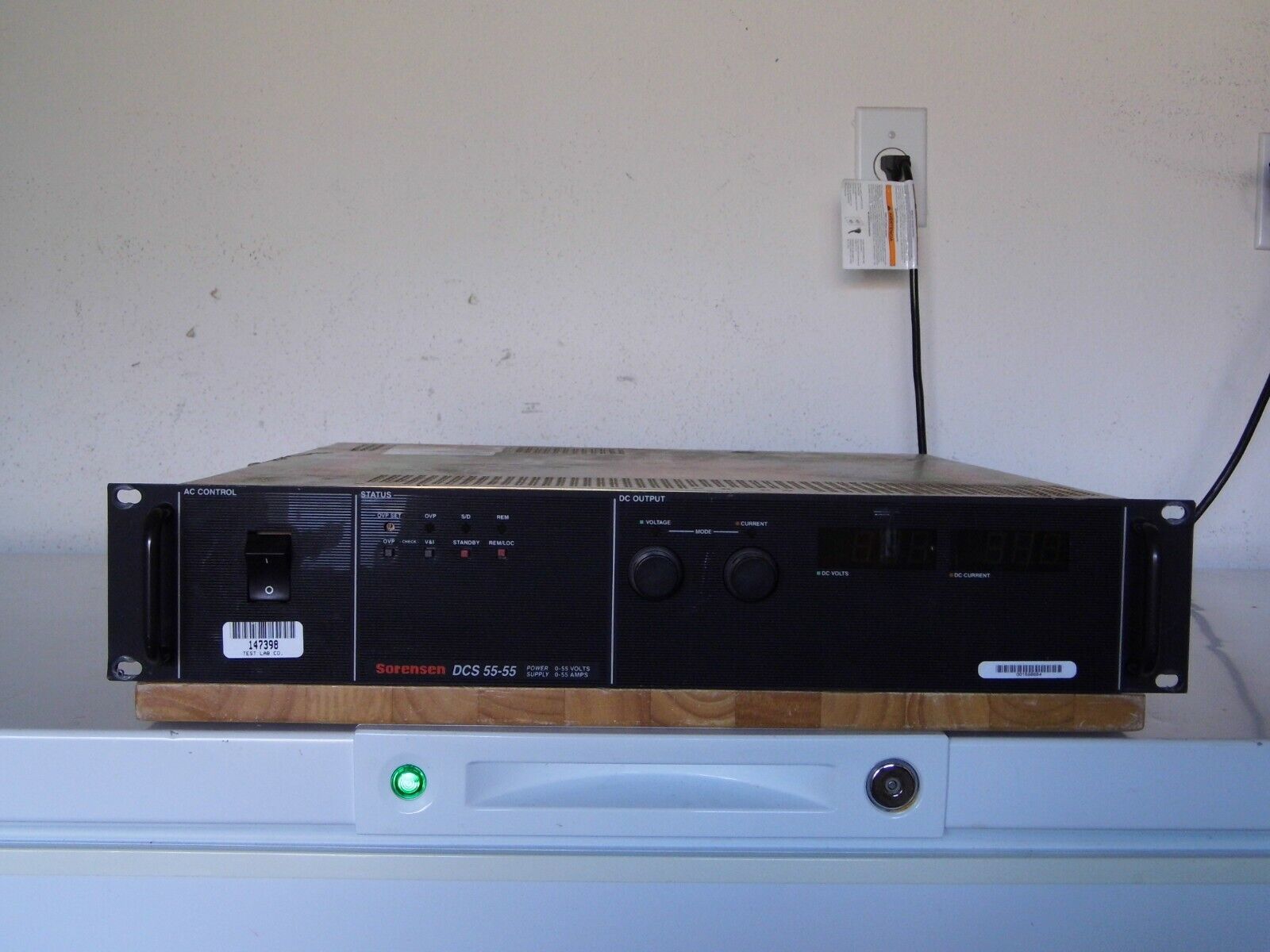

These Sorensen DCS55-55 units have been tested for full functionality.They are good units. The M16 option has been removed from these units so they function as standard units. This unit requires 190-250Vac input. It can be wired for single phase which limits power output to 2500 watts or it can be wired for 3 phase which allows 3000 watts. Product Overview Requires three phase 190-250 VAC input power, however it can be operated using single phase 200-250 VAC with slightly reduced (2500W) output capacity. The DCS Family of 1 kW, 1.2 kW and 3 kW programmable power supplies utilizes unique packaging techniques to achieve continuous full output power (1 kW, 1.2 kW or 3 kW) in any volt/amp combination within the rated output voltage and current limits in a low profile chassis., Demonstrated large installed base over a long period of time, the DCS family provides a highly reliable power platform. This family has an easy-to-use front panel with 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously. LEDs indicate overtemperature, remote programming, shutdown and over voltage protection, status and constant-voltage/current mode operation. The DCS 3 kW Models have push button control of the output standby mode, OVP reset, remote/local programming and preview status of voltage, current and OVP setpoints. Meter Accuracy 1% of full scale + 1 count Max. Voltage Differential from Output to Safety Ground 150 VDC Remote Start/Stop and Interlock TTL compatible input or 12-250 VAC (12-130 VDC) or a contact closure Cooling Internal fan, over temperature shutdown if internal heat sink exceeds set temperature Remote Sense The maximum allowed sense line drop is 4V per line (2V on the DCS 8/10V 1 kW/1.2 kW models and 1V/line for all 3 kW models). Line drop subtracts from the maximum available output voltage at full rated power. Remote Programming Enabled via external jumper on rear panel connector J3 Overvoltage Protection Crowbar type adjustable from 5-110% of rated output using front panel control (local or remote program selectable via J3 jumper) Remote Analog Programming Linearity ±1% Accuracy: ±5% Regulatory Certified to UL/CSA 61010 and IEC/EN 61010-1 CE Compliant (LVD and EMC directive) This item is offered with a 30 day warranty. 4 in stock.
